Dataentry
- Device Type:
- WiFi AP
- Brand:
- Aerohive
- Model:
- AP121
- FCCID:
- https://fcc.io/WBV-HIVEAP1X1
- Availability:
- Discontinued 2017
- Supported Since Commit:
- https://git.lede-project.org/?p=source.git;a=commit;h=10d11859dfbad0b4482d1a50b20ef91eeeeca2d7
- Supported Since Rel:
- 18.06.0
- Supported Current Rel:
- 25.12.0
- Gluon support:
- Yes
- Target:
- ath79
- Subtarget:
- nand
- Package architecture:
- mips_24kc
- Bootloader:
- U-Boot
- CPU:
- Atheros AR9344
- CPU Cores:
- 1
- CPU MHz:
- 560
- Flash MB:
- 1, 128NAND
- RAM MB:
- 128
- Ethernet 100M ports:
- -
- Ethernet 1Gbit ports:
- 1
- Ethernet 2.5Gbit ports:
- -
- Ethernet 5Gbit ports:
- -
- Ethernet 10Gbit ports:
- -
- SFP ports:
- -
- SFP+ ports:
- -
- Switch:
- -
- VLAN:
- ¿
- Modem:
- -
- WLAN Hardware:
- Atheros AR9344, Atheros AR9382
- WLAN 2.4GHz:
- b/g/n
- WLAN 5.0GHz:
- a/n
- WLAN 6.0GHz:
- -
- WLAN 60.0GHz:
- -
- WLAN Comments:
- 2x2:2 MIMO
- WLAN driver:
- ath9k
- Detachable Antennas:
- -
- Bluetooth:
- -
- miniPCI ports:
- -
- USB ports:
- 1x 2.0
- SATA ports:
- -
- Video ports:
- -
- Audio ports:
- -
- Phone ports:
- -
- Serial:
- Yes
- Serial connection parameters:
- 9600 / 8N1
- Serial connection voltage:
- ¿
- JTAG:
- ¿
- LED count:
- 2
- Button count:
- 1
- GPIOs:
- -
- Power Supply:
- 12 VDC, 1.1A or PoE 802.3af (48V, 0.35A)
- Outdoor:
- No
- OpenVPN performance:
- ¿
- Wireguard performance:
- ¿
- Device Page:
- ap121
- Forum search:
- AP121
- Git search:
- AP121
- OEM Device Homepage URL:
- http://www.aerohive.com/products/access-points/ap121.html
- Firmware OpenWrt Install URL:
- https://downloads.openwrt.org/releases/25.12.0/targets/ath79/nand/openwrt-25.12.0-ath79-nand-aerohive_hiveap-121-squashfs-factory.bin
- Firmware OpenWrt Upgrade URL:
- https://downloads.openwrt.org/releases/25.12.0/targets/ath79/nand/openwrt-25.12.0-ath79-nand-aerohive_hiveap-121-squashfs-sysupgrade.bin
- Firmware OpenWrt snapshot Install URL:
- https://downloads.openwrt.org/snapshots/targets/ath79/nand/openwrt-ath79-nand-aerohive_hiveap-121-squashfs-factory.bin
- Firmware OpenWrt snapshot Upgrade URL:
- https://downloads.openwrt.org/snapshots/targets/ath79/nand/openwrt-ath79-nand-aerohive_hiveap-121-squashfs-sysupgrade.bin
- Installation method(s):
- U-Boot TFTP + serial recovery, see git-commit
- Recovery method(s):
- U-Boot TFTP + serial recovery

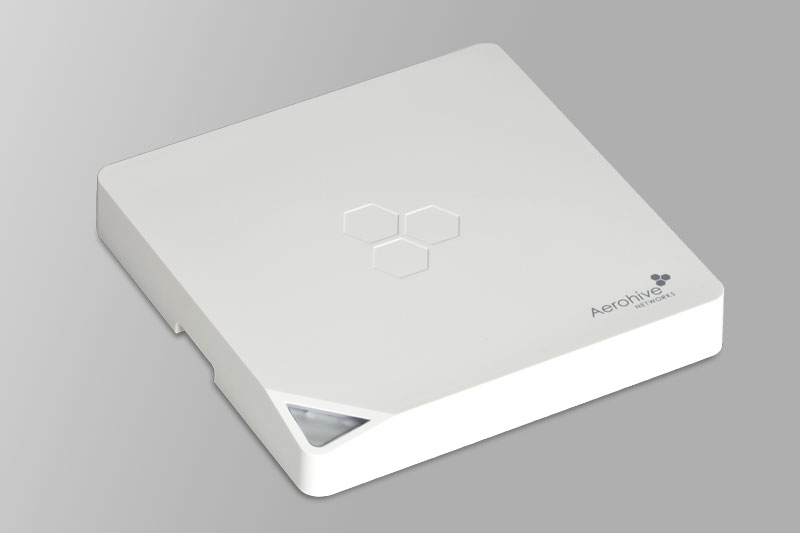

- Picture:
- Comments:
- End-of-Sale date for this product is August 1st, 2017
