Dataentry
- Device Type:
- Range Extender
- Brand:
- ASUS
- Model:
- RP-AC51
- FCCID:
- https://fcc.io/MSQ-RPAC4200
- Availability:
- Discontinued
- Supported Since Commit:
- https://git.openwrt.org/?p=openwrt/openwrt.git;a=commit;h=416d4483e878fe316ba490c3948850c0aee0b828
- Supported Since Rel:
- 23.05.0
- Supported Current Rel:
- 25.12.5
- Gluon support:
- unknown
- Target:
- ath79
- Subtarget:
- generic
- Package architecture:
- mips_24kc
- Bootloader:
- U-Boot
- CPU:
- Qualcomm Atheros QCA9531
- CPU Cores:
- 1
- CPU MHz:
- 650
- Flash MB:
- 16
- RAM MB:
- 128
- Ethernet 100M ports:
- 1
- Ethernet 1Gbit ports:
- -
- Ethernet 2.5Gbit ports:
- -
- Ethernet 5Gbit ports:
- -
- Ethernet 10Gbit ports:
- -
- SFP ports:
- -
- SFP+ ports:
- -
- Switch:
- -
- VLAN:
- Yes
- Modem:
- -
- WLAN Hardware:
- Qualcomm Atheros QCA9531, Qualcomm Atheros QCA9886
- WLAN 2.4GHz:
- b/g/n
- WLAN 5.0GHz:
- a/n/ac
- WLAN driver:
- ath10k-ct
- Detachable Antennas:
- -
- Bluetooth:
- -
- miniPCI ports:
- -
- USB ports:
- -
- SATA ports:
- -
- Video ports:
- -
- Audio ports:
- -
- Phone ports:
- -
- Serial:
- Yes
- Serial connection parameters:
- ¿
- Serial connection voltage:
- ¿
- JTAG:
- ¿
- LED count:
- ¿
- Button count:
- ¿
- GPIOs:
- -
- Power Supply:
- 100-240 VAC, 50/60 Hz, 0.18A
- Outdoor:
- No
- OpenVPN performance:
- ¿
- Wireguard performance:
- ¿
- Forum search:
- RP-AC51
- Git search:
- RP-AC51
- WikiDevi URL:
- https://wikidevi.wi-cat.ru/ASUS_RP-AC51
- WikiDevi ID:
- ASUS_RP-AC51
- OEM Device Homepage URL:
- https://www.asus.com/networking-iot-servers/range-extenders/all-series/rp-ac51/
- Firmware OEM Stock URL:
- https://www.asus.com/networking-iot-servers/range-extenders/all-series/rp-ac51/helpdesk_bios
- Firmware OpenWrt Install URL:
- https://downloads.openwrt.org/releases/25.12.5/targets/ath79/generic/openwrt-25.12.5-ath79-generic-asus_rp-ac51-squashfs-factory.bin
- Firmware OpenWrt Upgrade URL:
- https://downloads.openwrt.org/releases/25.12.5/targets/ath79/generic/openwrt-25.12.5-ath79-generic-asus_rp-ac51-squashfs-sysupgrade.bin
- Firmware OpenWrt snapshot Install URL:
- https://downloads.openwrt.org/snapshots/targets/ath79/generic/openwrt-ath79-generic-asus_rp-ac51-squashfs-factory.bin
- Firmware OpenWrt snapshot Upgrade URL:
- https://downloads.openwrt.org/snapshots/targets/ath79/generic/openwrt-ath79-generic-asus_rp-ac51-squashfs-sysupgrade.bin
- Installation method(s):
- Asus Firmware Restoration tool, U-Boot TFTP recovery, see git-commit
- Recovery method(s):
- Asus Firmware Restoration tool, U-Boot TFTP recovery, see git-commit

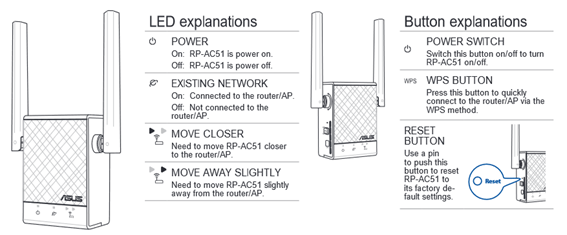

- Picture:
