Techdata: AVM FRITZ!Box 7360SL
Usage
- IMPORTANT : Edit this page only via the LEFT edit button below the dataentry box
- After editing, please enter a short summary of your edit:
- Which field has been changed? (e.g. Ethernet 100M ports)
- What have you done? (e.g. added / updated / deleted / ...)
- Why has it been changed? / What is your datasource? (acc. devicepage / wikidevi / forum ...)
- Example summary: Ethernet 100M ports updated according wikidevi
- For adding new dropdown values, Contact an OpenWrt wiki admin (tmomas)
- For conventions / allowed values, see below
- For general usage help, see Dataentry template background
- Searching for pure technical facts? See table below.
- Searching for installation instructions, bootlogs, other info? See link to Device Page below.
Dataentry
- Device Type:
- Modem
- Brand:
- AVM
- Model:
- FRITZ!Box 7360 SL
- Availability:
- Discontinued
- Supported Since Commit:
- https://git.lede-project.org/?p=source.git;a=commit;h=bf007a480a46a9fa843765a54fc2f8aa32b2683f
- Supported Since Rel:
- 17.01.0
- Supported Current Rel:
- 24.10.4
- Unsupported Functions:
- DECT
- Gluon support:
- Yes
- Target:
- lantiq
- Subtarget:
- xrx200
- Package architecture:
- mips_24kc
- Bootloader:
- Adam2
- CPU:
- Lantiq XWAY VRX288
- CPU Cores:
- 2
- CPU MHz:
- 500
- Flash MB:
- 16, 32
- RAM MB:
- 128
- Ethernet 100M ports:
- 2
- Ethernet 1Gbit ports:
- 2
- Ethernet 2.5Gbit ports:
- -
- Ethernet 5Gbit ports:
- -
- Ethernet 10Gbit ports:
- -
- SFP ports:
- -
- SFP+ ports:
- -
- Switch:
- Lantiq GSWIP (built-in SoC switch)
- VLAN:
- Yes
- Modem:
- VDSL2
- WLAN Hardware:
- Atheros AR928 -BL1A
- WLAN 2.4GHz:
- b/g/n
- WLAN 5.0GHz:
- -
- WLAN driver:
- ath9k
- Detachable Antennas:
- -
- Bluetooth:
- -
- miniPCI ports:
- ¿
- USB ports:
- 2x 2.0
- SATA ports:
- -
- Video ports:
- -
- Audio ports:
- -
- Phone ports:
- 1, POTS, DECT
- Serial:
- Yes
- Serial connection parameters:
- 38400 / 8N1
- Serial connection voltage:
- ¿
- JTAG:
- ¿
- LED count:
- 5
- Button count:
- 3
- GPIOs:
- -
- Power Supply:
- 12 VDC, 1.4A
- Outdoor:
- No
- OpenVPN performance:
- ¿
- Wireguard performance:
- ¿
- Device Page:
- fritz.box.wlan.7360
- OWrt Forum Topic URL:
- https://forum.openwrt.org/viewtopic.php?id=59549
- Forum search:
- Fritz 7360
- Git search:
- 7360SL
- WikiDevi URL:
- https://wikidevi.wi-cat.ru/AVM_FRITZ!Box_Fon_WLAN_7360_SL
- WikiDevi ID:
- AVM_FRITZ!Box_Fon_WLAN_7360_SL
- OEM Device Homepage URL:
- http://avm.de/service/fritzbox/fritzbox-7360/uebersicht/
- Firmware OEM Stock URL:
- ftp://ftp.avm.de/fritz.box/fritzbox.fon_wlan_7360/
- Firmware OpenWrt Install URL:
- https://downloads.openwrt.org/releases/24.10.4/targets/lantiq/xrx200/openwrt-24.10.4-lantiq-xrx200-avm_fritz7360sl-squashfs-sysupgrade.bin
- Firmware OpenWrt Upgrade URL:
- https://downloads.openwrt.org/releases/24.10.4/targets/lantiq/xrx200/openwrt-24.10.4-lantiq-xrx200-avm_fritz7360sl-squashfs-sysupgrade.bin
- Firmware OpenWrt snapshot Install URL:
- https://downloads.openwrt.org/snapshots/targets/lantiq/xrx200/openwrt-lantiq-xrx200-avm_fritz7360sl-squashfs-sysupgrade.bin
- Firmware OpenWrt snapshot Upgrade URL:
- https://downloads.openwrt.org/snapshots/targets/lantiq/xrx200/openwrt-lantiq-xrx200-avm_fritz7360sl-squashfs-sysupgrade.bin
- Installation method(s):
- EVA FTP
- Recovery method(s):
- EVA FTP

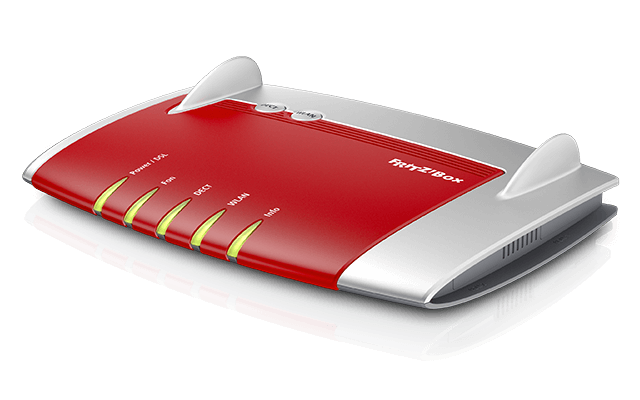

- Picture:
- Comments:
- DECT IP telephony, there is also a V1 and a V2, ADSL2, ADSL2+, VDSL capable; See also https://boxmatrix.info/wiki/FRITZ!Box_Fon_WLAN_7360_SL
