Dataentry
- Device Type:
- Single Board Computer
- Brand:
- FriendlyARM
- Model:
- NanoPi R5S
- Availability:
- Available 2026
- Where available:
- friendlyelec.com, amazon.com, aliexpress.com
- Supported Since Commit:
- https://git.openwrt.org/?p=openwrt/openwrt.git;a=commit;h=c06a71f0b3fae00dbd402840ea6e3b532c35b0da
- Supported Since Rel:
- 24.10.0
- Supported Current Rel:
- 25.12.5
- Image too big:
- -
- Gluon support:
- unknown
- Target:
- rockchip
- Subtarget:
- armv8
- Package architecture:
- aarch64_generic
- Bootloader:
- U-Boot
- CPU:
- Rockchip RK3568B2
- CPU Cores:
- 4
- CPU MHz:
- 2000
- Flash MB:
- eMMC, microSDXC
- RAM MB:
- 4096
- Ethernet 100M ports:
- -
- Ethernet 1Gbit ports:
- 1
- Ethernet 2.5Gbit ports:
- 2
- Ethernet 5Gbit ports:
- -
- Ethernet 10Gbit ports:
- -
- SFP ports:
- -
- SFP+ ports:
- -
- Switch:
- -
- VLAN:
- Yes
- Modem:
- -
- Comments network ports:
- RTL8211F-CG 1Gbe Phy, 2x RTL8125BG 2.5Gbe Phy via PCIe
- WLAN 2.4GHz:
- -
- WLAN 5.0GHz:
- -
- WLAN Comments:
- WLAN dependent on M.2 installed
- WLAN driver:
- none
- Detachable Antennas:
- -
- Bluetooth:
- -
- miniPCI ports:
- 1x M.2 Key M PCIe (PCIe2.1 x1) supports NVME, PCIe WiFi, etc.
- USB ports:
- 2x 3.0
- SATA ports:
- -
- Video ports:
- HDMI
- Audio ports:
- -
- Phone ports:
- -
- Serial:
- Yes
- Serial connection voltage:
- 3.3
- LED count:
- 4
- Button count:
- 1
- GPIOs:
- 8
- Power Supply:
- 5 VDC, 3.0A via USB Type-C
- Outdoor:
- No
- Wireguard performance:
- 350
- Device Page:
- nanopi_r5s
- Forum search:
- NanoPi R5S
- Git search:
- NanoPi R5S
- WikiDevi URL:
- https://wikidevi.wi-cat.ru/NanoPi_R5S
- WikiDevi ID:
- NanoPi_R5S
- OEM Device Homepage URL:
- https://wiki.friendlyelec.com/wiki/index.php/NanoPi_R5S
- Firmware OEM Stock URL:
- https://drive.google.com/drive/folders/1yWLtwCesnHfoM8DG7NgJ4jZrjRSI-dQs
- Firmware OpenWrt Install URL:
- https://downloads.openwrt.org/releases/25.12.5/targets/rockchip/armv8/openwrt-25.12.5-rockchip-armv8-friendlyarm_nanopi-r5s-ext4-sysupgrade.img.gz
- Firmware OpenWrt Upgrade URL:
- https://downloads.openwrt.org/releases/25.12.5/targets/rockchip/armv8/openwrt-25.12.5-rockchip-armv8-friendlyarm_nanopi-r5s-squashfs-sysupgrade.img.gz
- Firmware OpenWrt snapshot Install URL:
- https://downloads.openwrt.org/snapshots/targets/rockchip/armv8/openwrt-rockchip-armv8-friendlyarm_nanopi-r5s-ext4-sysupgrade.img.gz
- Firmware OpenWrt snapshot Upgrade URL:
- https://downloads.openwrt.org/snapshots/targets/rockchip/armv8/openwrt-rockchip-armv8-friendlyarm_nanopi-r5s-squashfs-sysupgrade.img.gz
- Installation method(s):
- SD card
- Comment installation:
- Builds are available for ext4 and squashfs. Decompress then flash to an SD card.
- Recovery method(s):
- SD card

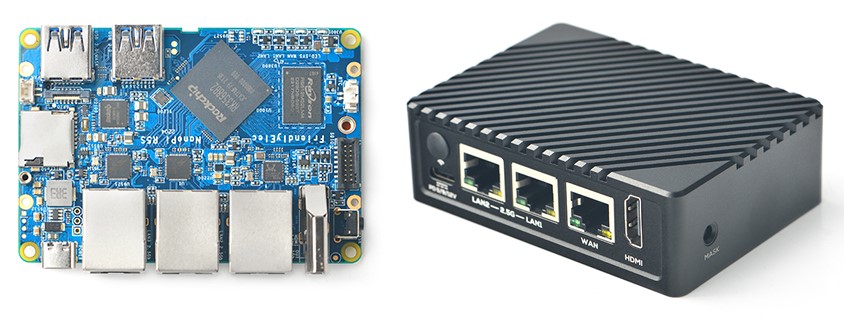

- Picture:
- Comments:
- The OEM fork is called FriendlyWrt and may have outdated packages
