Dataentry
- Device Type:
- WiFi Router
- Brand:
- Linksys
- Model:
- WRT3200ACM
- Version:
- v1 (rango)
- FCCID:
- https://fcc.io/Q87/-WRT3200ACM
- Availability:
- Discontinued
- Supported Since Commit:
- https://git.lede-project.org/?p=source.git;a=commit;h=3764caa93478e3472df3128b79b6d0f6b0fb999c
- Supported Since Rel:
- 17.01.0
- Supported Current Rel:
- 25.12.5
- Gluon support:
- No
- Target:
- mvebu
- Subtarget:
- cortexa9
- Package architecture:
- arm_cortex-a9_vfpv3-d16
- Bootloader:
- U-Boot
- CPU:
- Marvell Armada 385 88F6820
- CPU Cores:
- 2
- CPU MHz:
- 1866
- Flash MB:
- 256NAND
- RAM MB:
- 512
- Ethernet 100M ports:
- -
- Ethernet 1Gbit ports:
- 5
- Ethernet 2.5Gbit ports:
- -
- Ethernet 5Gbit ports:
- -
- Ethernet 10Gbit ports:
- -
- SFP ports:
- -
- SFP+ ports:
- -
- Switch:
- Marvell 88E6352
- VLAN:
- Yes
- Modem:
- -
- WLAN Hardware:
- Marvell 88W8964
- WLAN 2.4GHz:
- b/g/n
- WLAN 5.0GHz:
- a/n/ac
- WLAN 6.0GHz:
- -
- WLAN 60.0GHz:
- -
- WLAN driver:
- mwlwifi
- Detachable Antennas:
- 4
- Bluetooth:
- -
- miniPCI ports:
- -
- USB ports:
- 1x 2.0, 1x 3.0
- SATA ports:
- 1
- Comments USB SATA ports:
- eSATA <-> USB2
- Video ports:
- -
- Audio ports:
- -
- Phone ports:
- -
- Serial:
- Yes
- Serial connection parameters:
- 115200 / 8N1
- Serial connection voltage:
- 3.3
- JTAG:
- Yes
- LED count:
- 12
- Button count:
- 2
- GPIOs:
- ¿
- Power Supply:
- 12 VDC, 3.0A via barrel
- Outdoor:
- No
- OpenVPN performance:
- 100
- Wireguard performance:
- 425
- Device Page:
- wrt3200acm
- Forum search:
- WRT3200ACM
- Git search:
- WRT3200ACM
- WikiDevi URL:
- https://wikidevi.wi-cat.ru/Linksys_WRT3200ACM
- WikiDevi ID:
- Linksys_WRT3200ACM
- Firmware OEM Stock URL:
- https://downloads.linksys.com/support/assets/firmware/FW_WRT3200ACM_1.0.9.211585_prod.img
- Firmware OpenWrt Install URL:
- https://downloads.openwrt.org/releases/25.12.5/targets/mvebu/cortexa9/openwrt-25.12.5-mvebu-cortexa9-linksys_wrt3200acm-squashfs-factory.img
- Firmware OpenWrt Upgrade URL:
- https://downloads.openwrt.org/releases/25.12.5/targets/mvebu/cortexa9/openwrt-25.12.5-mvebu-cortexa9-linksys_wrt3200acm-squashfs-sysupgrade.bin
- Firmware OpenWrt snapshot Install URL:
- https://downloads.openwrt.org/snapshots/targets/mvebu/cortexa9/openwrt-mvebu-cortexa9-linksys_wrt3200acm-squashfs-factory.img
- Firmware OpenWrt snapshot Upgrade URL:
- https://downloads.openwrt.org/snapshots/targets/mvebu/cortexa9/openwrt-mvebu-cortexa9-linksys_wrt3200acm-squashfs-sysupgrade.bin
- Installation method(s):
- see devicepage
- Comment installation:
- Image name may need to be changed to OEM Code Name
- Recovery method(s):
- see devicepage
- Comment recovery:
- Image name MUST be OEM Code Name

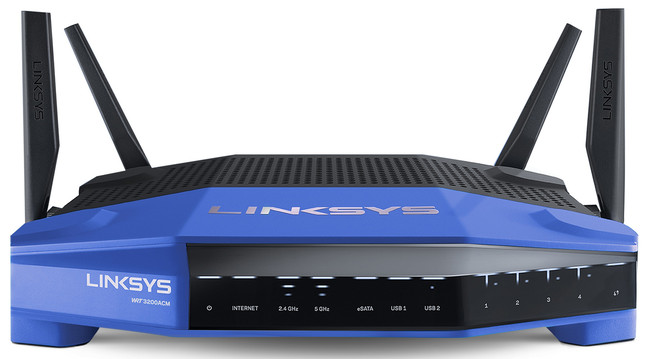

- Picture:
- Comments:
- [Launch Date: 2016.10] OEM Firmware Name: rango.img
