Techdata: Xiaomi Redmi AX6
Usage
- IMPORTANT : Edit this page only via the LEFT edit button below the dataentry box
- After editing, please enter a short summary of your edit:
- Which field has been changed? (e.g. Ethernet 100M ports)
- What have you done? (e.g. added / updated / deleted / ...)
- Why has it been changed? / What is your datasource? (acc. devicepage / wikidevi / forum ...)
- Example summary: Ethernet 100M ports updated according wikidevi
- For adding new dropdown values, Contact an OpenWrt wiki admin (tmomas)
- For conventions / allowed values, see below
- For general usage help, see Dataentry template background
- Searching for pure technical facts? See table below.
- Searching for installation instructions, bootlogs, other info? See link to Device Page below.
Dataentry
- Device Type:
- WiFi Router
- Brand:
- Xiaomi
- Model:
- Redmi AX6
- FCCID:
- http://¿
- Availability:
- Available 2023
- Where available:
- aliexpress.com
- Supported Since Commit:
- https://git.openwrt.org/?p=openwrt/openwrt.git;a=commit;h=8253cb2de59aff81e576ea2655b1d290e4098001
- Supported Since Rel:
- 23.05.0
- Supported Current Rel:
- 24.10.5
- Gluon support:
- No
- Target:
- qualcommax
- Subtarget:
- ipq807x
- Package architecture:
- aarch64_cortex-a53
- Bootloader:
- U-Boot
- CPU:
- Qualcomm IPQ8071A
- CPU Cores:
- 4
- CPU MHz:
- 1400
- Flash MB:
- 128NAND
- RAM MB:
- 512
- Ethernet 100M ports:
- -
- Ethernet 1Gbit ports:
- 4
- Ethernet 2.5Gbit ports:
- -
- Ethernet 5Gbit ports:
- -
- Ethernet 10Gbit ports:
- -
- SFP ports:
- -
- SFP+ ports:
- -
- Switch:
- Qualcomm Atheros QCA8075
- VLAN:
- Yes
- Modem:
- -
- Comments network ports:
- 1 WAN port, 3 LAN ports
- WLAN Hardware:
- Qualcomm QCN5024, Qualcomm QCN5054
- WLAN 2.4GHz:
- b/g/n/ax
- WLAN 5.0GHz:
- a/n/ac/ax
- WLAN 6.0GHz:
- -
- WLAN 60.0GHz:
- -
- WLAN Comments:
- OFDMA + MU-MIMO, 5G QCN5054 4×4 MIMO 80MHz 2×2 MIMO 160MHz, 2.4G QCN5024 2×2 MIMO 573Mbps (CPU restricted)
- WLAN driver:
- ath11k
- Detachable Antennas:
- -
- Bluetooth:
- -
- miniPCI ports:
- -
- USB ports:
- -
- SATA ports:
- -
- Video ports:
- -
- Audio ports:
- -
- Phone ports:
- -
- Serial:
- Yes
- Serial connection parameters:
- 115200 / 8N1
- Serial connection voltage:
- 1.8
- JTAG:
- No
- LED count:
- 2
- Button count:
- -
- GPIOs:
- ¿
- Power Supply:
- 12 VDC, 1.5A via barrel
- Outdoor:
- No
- OpenVPN performance:
- ¿
- Wireguard performance:
- ¿
- Device Page:
- xiaomi_redmi_ax6_ax3000
- OWrt Forum Topic URL:
- https://forum.openwrt.org/t/add-support-for-redmi-ax6-ax3000-wi-fi-6-mesh-router/
- Forum search:
- Redmi AX6
- Git search:
- Redmi AX6
- WikiDevi URL:
- https://wikidevi.wi-cat.ru/Xiaomi_Mi_Router_Redmi_AX6_(AX3000)
- WikiDevi ID:
- Xiaomi_Mi_Router_Redmi_AX6_(AX3000)
- OEM Device Homepage URL:
- http://¿
- Firmware OEM Stock URL:
- https://miuirom.org/miwifi/redmi-router-ax6
- Firmware OpenWrt Install URL:
- https://downloads.openwrt.org/releases/24.10.5/targets/qualcommax/ipq807x/openwrt-24.10.5-qualcommax-ipq807x-redmi_ax6-initramfs-factory.ubi
- Firmware OpenWrt Upgrade URL:
- https://downloads.openwrt.org/releases/24.10.5/targets/qualcommax/ipq807x/openwrt-24.10.5-qualcommax-ipq807x-redmi_ax6-squashfs-sysupgrade.bin
- Firmware OpenWrt snapshot Install URL:
- https://downloads.openwrt.org/snapshots/targets/qualcommax/ipq807x/openwrt-qualcommax-ipq807x-redmi_ax6-initramfs-factory.ubi
- Firmware OpenWrt snapshot Upgrade URL:
- https://downloads.openwrt.org/snapshots/targets/qualcommax/ipq807x/openwrt-qualcommax-ipq807x-redmi_ax6-squashfs-sysupgrade.bin
- Installation method(s):
- see devicepage
- Recovery method(s):
- see devicepage
- Comment recovery:
- rename image to 'C0A81F02.img' before tftp'ing

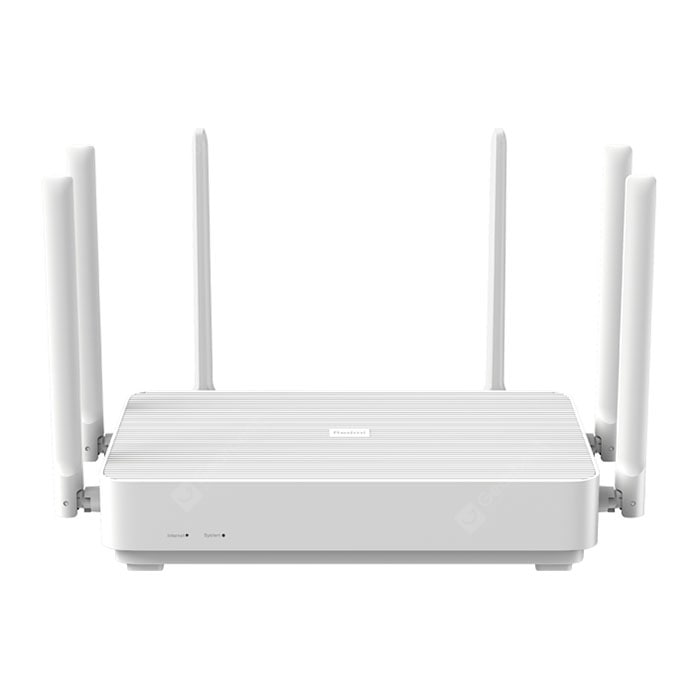

- Picture:
